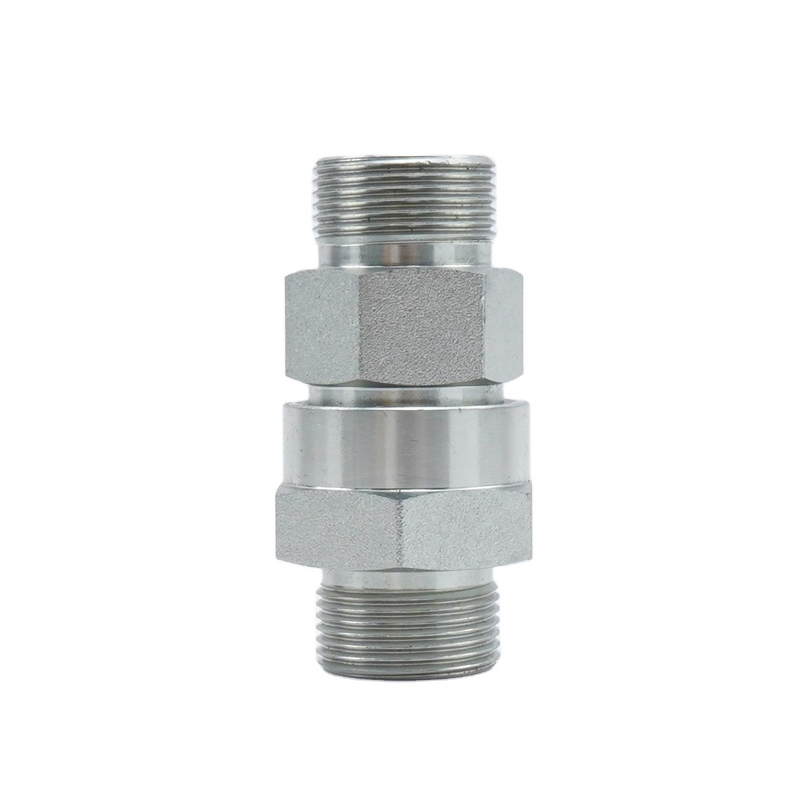

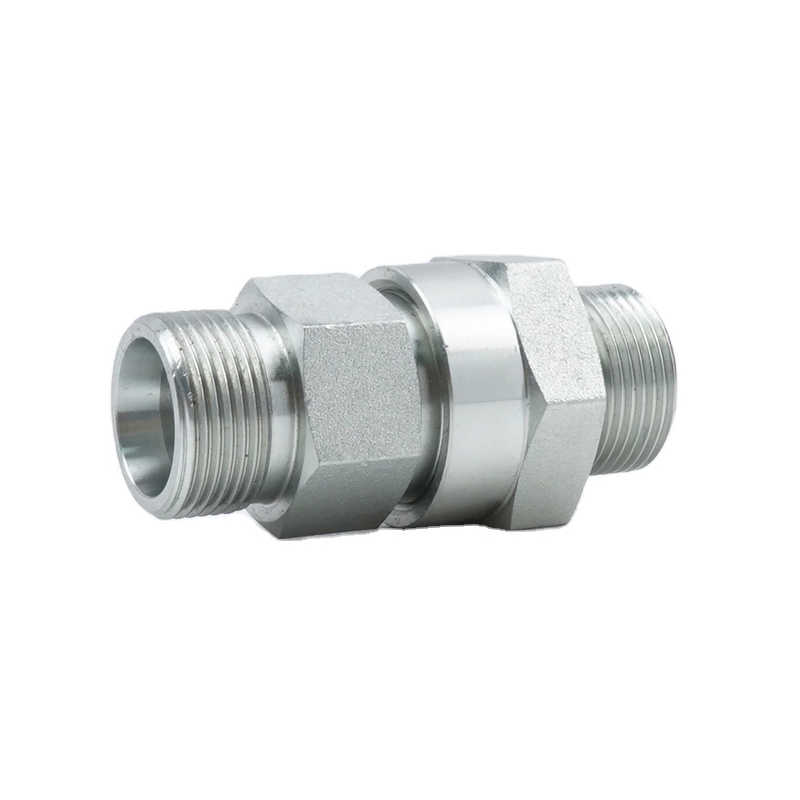

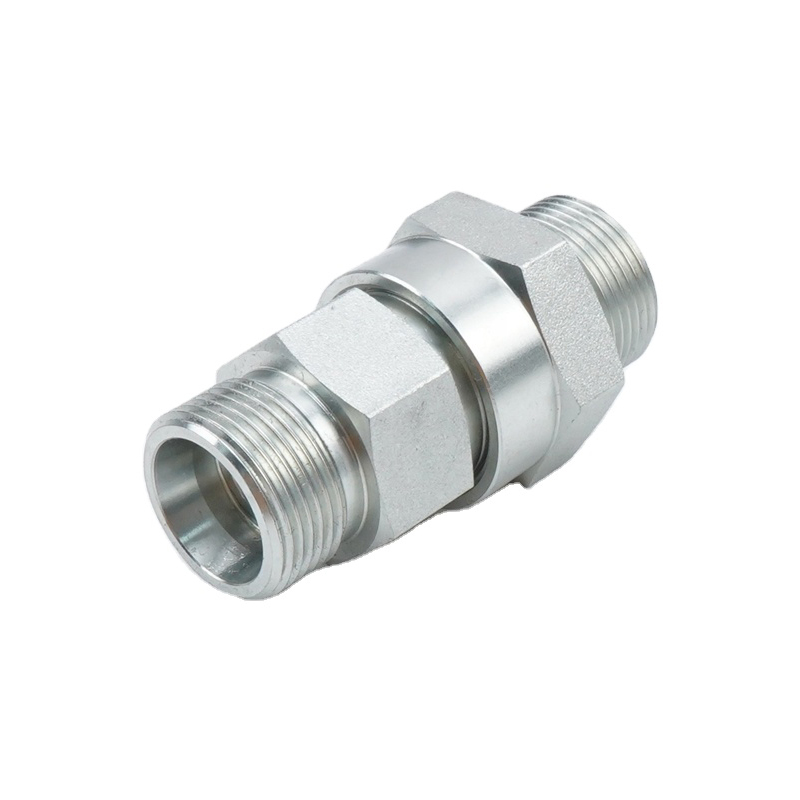

Check valve-RSZ-LR-WD

Features

Series	bar	Tube OD	DIN-ISO 228 (R... DIN 259)	Type	Reference	kg perlOOpcs.	d	L2	L5	l	i	S1	S2	S3	outlet
L	400 (5801)	6	G 1/8A	RSZ6LR-WD	WAL037531	12.0	13.9	50.5	43	36	8	22	14	27	4.0
		8	G 1/4 A	RSZ8LR-WD	WAL370766	12.0	18.9	50.5	43	36	12	22	17	27	6.0
		10	G 1/4 A	RSZ10LR-WD	WAL604922	10.4	18.9	48.5	41	34	12	22	19	27	6.0
		12	G3/8A	RSZ12LR-WD	WAL371413	14.0	21.9	53.5	46	39	12	22	22	27	7.5
		15	G 1/2A	RSZ15LR-WD	WAL372065	19.5	26.9	56	48	41	14	27	27	32	11.0
		18	G 1/2 A	RSZ18LR-WD	WAL067899	23.0	26.9	61.5	53	45.5	14	27	32	32	11.0
		22	G3/4A	RSZ22LR-WD	WAL067989	47.0	31.9 69.5		61	53.5	16	46”	36	41**	18.0
	250 (3626)	28	G 1 A	RSZ28LR-WD	WAL370767	52.5	39.9	71	62	54.5	18	49"	41	41**	20.0
		35	G 174A	RSZ35LR-WD	WAL371378	132.0	49.9	88.5	77.5	67	20	60	50	70	29.0
		42	G 1，/2A	RSZ42LR-WD	WAL610625	140.0	54.9	87.5	75.5	64.5	22	60	60	70	29.0

Quote Now

Specification

Ningbo Hongge Hydraulic Co.,Ltd

Ningbo Hongge Hydraulic Co.,Ltd is a professional supplier of industrial products. The company was established in 2014 and is located in Xikou Industrial Park, Fenghua District, Ningbo City. It is a professional enterprise integrating R&D, manufacturing, sales and service of hydraulic ball valve products. , Has a wealth of application experience and actual performance, has been introducing solutions from well-known foreign manufacturers for many years, providing customers with reliable solutions, seeking reliable products, and according to customer needs, cooperating with foreign countries to develop various custom Check valve-RSZ-LR-WD to improve the quality of ball valves .

As a famous China Check valve-RSZ-LR-WD Suppliers and custom Check valve-RSZ-LR-WD company, Our company's business scope includes: hydraulic components, high-pressure ball valves, Check valve-RSZ-LR-WD, hydraulic ball valves, international standard high-pressure ball valves, high-pressure stop valve series, etc. and hydraulic system accessories, and provide engineering machinery, metallurgy, mining, petroleum, wind power, ships, military, Practitioners in agriculture and other industries provide high-quality hydraulic ball valves and professional consulting services, so they are widely recognized and praised by customers.
